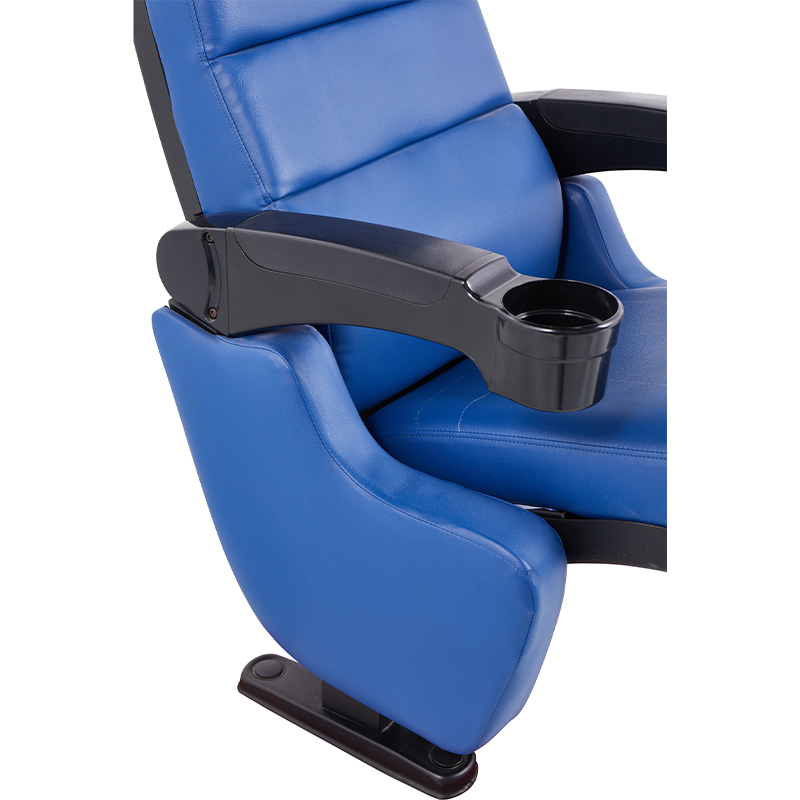

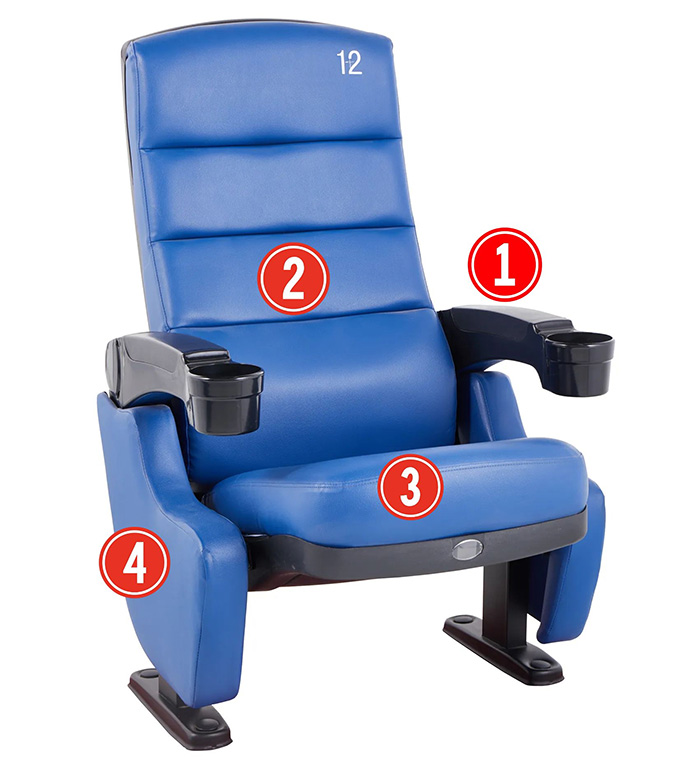

① Armrest: Made of high-quality ABS material through mold injection molding, with a cup holder on the armrest surface.
② & ③ Rear seat cushion: Made of polyurethane through one-time foaming, providing a soft, comfortable, and highly elastic sitting experience. It won't deform even after long-term use, with a density of no less than 50kg/m³.

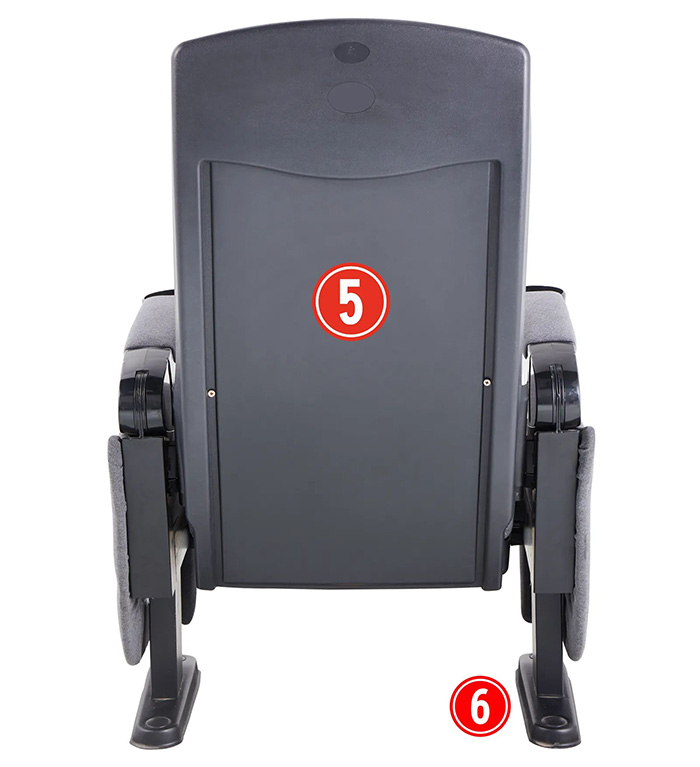

④ Side guard plate: Made of high-quality PP through injection molding, with high density, impact resistance, and anti-aging properties.
⑤ Leather: Made of high-quality fabric/optional top-grain cowhide, it is wear-resistant, anti-fading, and can be treated for water, oil, and stain resistance. Available in various colors.
⑥ Leg: The armrest feet are made of steel plates no less than 2.5mm thick through oil pressure and welding. The armrest feet base plate is made of steel plates no less than 2.5mm thick through stretching, ensuring the seat is firmly fixed to the floor.
Buffer recovery: Spring and damping are used to achieve flexible recovery without noise.
Screws: Steel hexagon socket head cap screws and expansion nuts.
Recovery mechanism: Equipped with an internal gravity slow automatic recovery device, allowing the seat to automatically return to its original position. Zero failure.
| Feature | Dimensions |
| Seat Function | Fixed Seat |
| Back Function | Fixed Back |
| Center Distance | 580 MM |
| Row Distance Requirement | 1100 MM |
| Detailed Dimensions | |
| Center to Center | 580 MM |
| Armrest Width | 70 MM |
| Cup Holder | 109 MM |
| Armrest to Floor | 600 MM |
| Seat Height | 470 MM |
| Seat Width | 470 MM |
| Seat Depth | 465 MM |
| Back Width | 485 MM |
| Total Height | 1080 MM |
| Total Depth | 760 MM |
| Single Seat Total Width | 650 MM |
