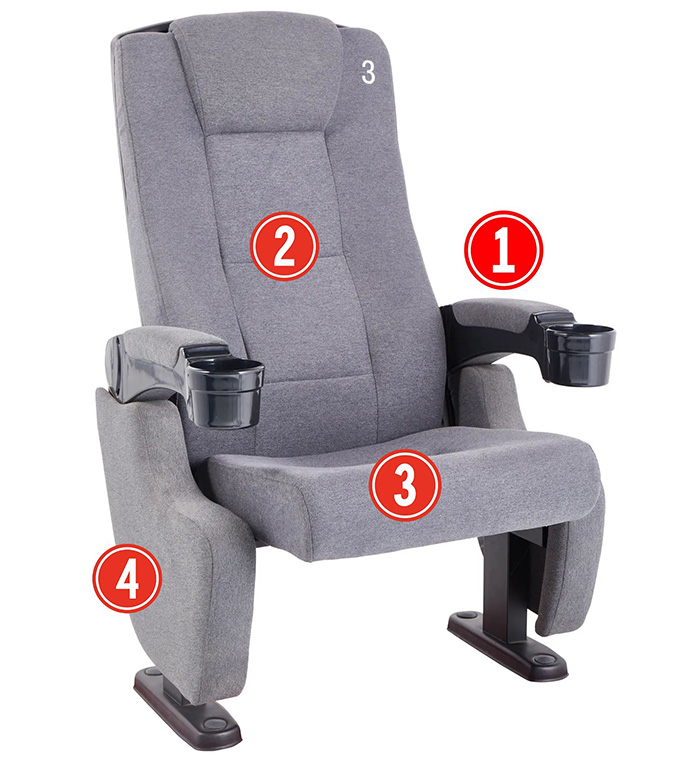

① Armrest: Made of high-quality ABS material through mold injection, the armrest surface is equipped with a cup holder.
② & ③ Rear seat cushion: Made of polyurethane through one-time foaming, it offers a soft, comfortable feel with good elasticity and will not deform even after long-term use. The density is no less than 50kg/m³.
④ Side guard plate: Made of high-quality PP through injection molding, it is of high density and resistant to impact and aging.

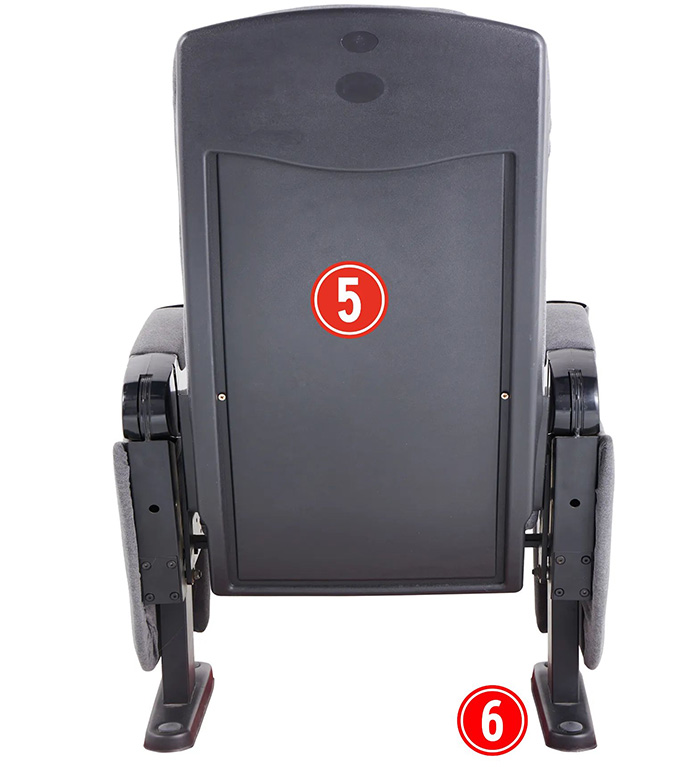

⑤ Fabric: Imported linen fabric is used, which has strong permeability and good sound absorption effect. The color and texture can be determined according to customer requirements.
⑥ Leg: The armrest feet are made of steel plates no less than 2.5mm thick through oil pressure and welding. The armrest feet base plate is formed by stretching steel plates no less than 2.5mm thick; it fixes the seat to the floor.
Buffer recovery: Flexible recovery is achieved through springs and dampers, and it is silent.
Screws: Steel hexagon socket head cap screws and expansion nuts.
Recovery mechanism: An internal gravity slow automatic recovery device is installed to enable the seat to return to its original position automatically. Zero failure.
| Feature | Dimensions |
| Seat Function | Fixed Seat |
| Back Function | Fixed Back |
| Center Distance | 580 MM |
| Row Distance Requirement | 1100 MM |
| Detailed Dimensions | |
| Center to Center | 580 MM |
| Armrest Width | 80 MM |
| Cup Holder | 109 MM |
| Armrest to Floor | 605 MM |
| Seat Height | 445 MM |
| Seat Width | 480 MM |
| Seat Depth | 480 MM |
| Back Width | 490 MM |
| Total Height | 1090 MM |
| Total Depth | 800 MM |
| Single Seat Total Width | 650 MM |
