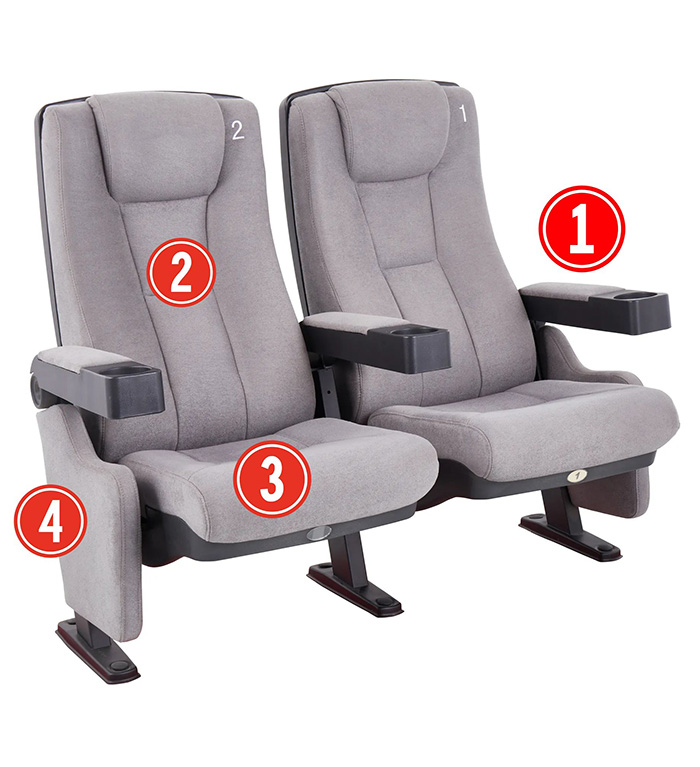

① Armrest: Made of high-quality ABS material through injection molding, the armrest surface is equipped with a cup holder.
② & ③ Rear seat cushion: Made of polyurethane through one-time foaming, it offers a soft, comfortable, and highly elastic sitting experience. It won't deform even after long-term use. The density is no less than 50kg/m³.
④ Side guard plate: Made of high-quality PP through injection molding, it is of high density and resistant to impact and aging.

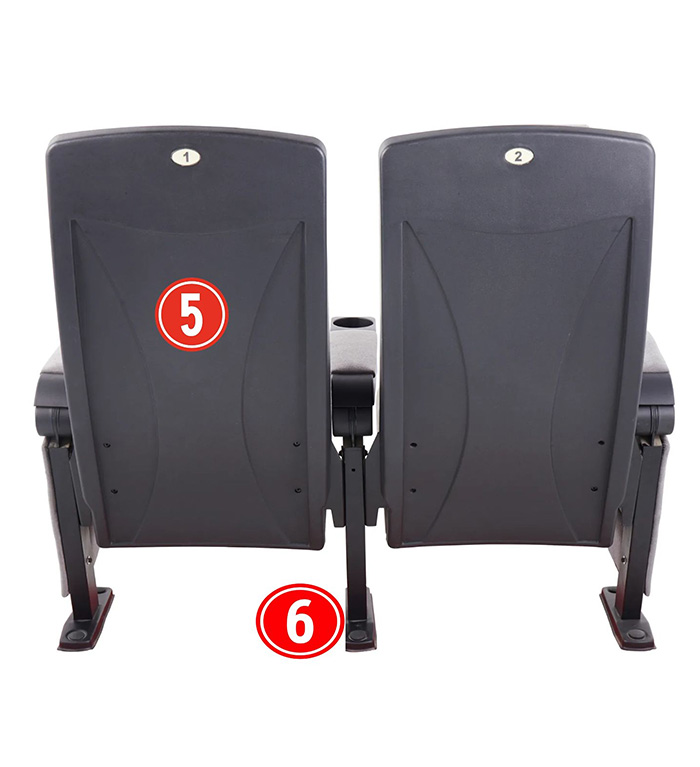

⑤ Fabric: Imported linen fabric is used, which has strong permeability and good sound absorption effect. The color and texture can be determined according to customer requirements.
⑥ Leg: The armrest feet are made of steel plates no less than 2.5mm thick through oil pressure and welding. The armrest feet base plate is formed by stretching steel plates no less than 2.5mm thick; it fixes the seat to the floor.
Buffer recovery: Flexible recovery is achieved through springs and dampers, and it is silent.
Screws: Steel hexagon socket head cap screws and expansion nuts.
Recovery mechanism: An internal gravity slow automatic recovery device is built in, allowing the seat to automatically return to its original position. Zero failure.
| Feature | Dimensions |
| Seat Function | Flippable Seat |
| Back Function | Fixed Back |
| Center Distance | 580 MM |
| Row Distance Requirement | 1100 MM |
| Detailed Dimensions | |
| Center to Center | 580 MM |
| Armrest Width | 80 MM |
| Cup Holder | 109 MM |
| Armrest to Floor | 615 MM |
| Seat Height | 455 MM |
| Seat Width | 470 MM |
| Seat Depth | 480 MM |
| Back Width | 460 MM |
| Total Height | 1075 MM |
| Total Depth | 790 MM |
| Single Seat Total Width | 650 MM |
